  SCHEDA PRODOTTO
| . |
|
Advanced Multi-Gigabit and 802.3at PoE+ Network Solution
PLANET POE-165 is a Single-Port, 802.3at Power over Ethernet Injector with a maximum of up to 30 watts of power output over Ethernet cables. It is also equipped with two 10M/100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.
The POE-165 delivers the Ethernet digital data with DC power over the twisted-pair cables as a 30-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-161S/162S, will separate the digital data and the power into three optional outputs (5V/12V/24V DC) with distance up to 100 meters.
PoE with High Power, Security, Stability and Easy Installation Features
As PoE applications have expanded to home users from the IT industry, PLANET has developed a new Single-port PoE+ Injector which meets the requirements of both the IT industry and home users for high wattage output and easy installation, respectively.
The POE-165 is a wall-mountable, single-port Gigabit 802.3at PoE+ injector with internal power supply in compact housing. Carrying both Ethernet data and power simultaneously, the POE-165 helps users to utilize just one Ethernet cable to easily install and deploy IP camera, wireless AP or VoIP phone networking in environments where power outlet is hard to find.
It offers an affordable, safe and reliable power solution for cost-conscious business and home users deploying Power over Ethernet networks.
30-watt Power over Ethernet Capability
The PoE in-line power following the IEEE 802.3at/af Power over Ethernet Plus standard makes the POE-165 able to deliver Gigabit speed Ethernet data and up to 30 watts of power to remote PoE compliant powered devices (PDs) over one Cat.5E/6 Ethernet cable. The POE-165 provides more flexibility in power requirement for all kinds of PDs at affordable installation costs. Designed especially for higher power required network equipment such as PTZ (pan, tilt, zoom) speed-dome camera, high power outdoor AP can be powered and work normally just through a single UTP cable with the POE-165 power injector.
All-in-One and Compact Size Design

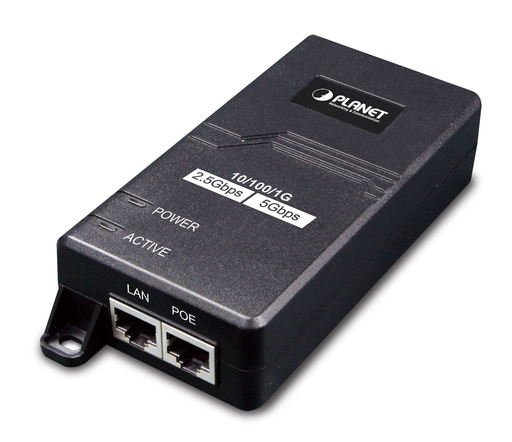

With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE-165 is an all-in-one, single-port PoE+ injector with internal power supply. In the compact size housing, the POE-165 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE ) on the top side and two RJ45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE-165 is ready to provide high-speed network communication and high power PoE+ injector functions simultaneously with no need of software configuration.
Quick and Easy Cabling Installation for PoE Network Deployment
Complying with both 802.3af and 802.3at PoE+ standards, the POE-165 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-165 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.
 |
Confezione: |
|
| |
Peso Lordo: 2 Kg
Dimensioni Lorde: 100x300x200 mm |
|
| |
|
|
|
PLANET - Sito web:http:// |
|
| |
|
|
| |
|
|
|
|
| |
|
